Description
Premium Construction – 34mm monotube made of 6061-T6 aluminum; first focal plane scope with German Schott HD glass.
German Optics System – Uses LaREE lens and VePRO FMC with over 90% light transmission.
Exceptional Clarity – Very little distortion, extra-low dispersion; excellent for dawn, dusk, and even night shooting.
True 6x Zoom – Constant 4" eye relief without dark rings around the image.
Illumination & Parallax – Six levels of red illumination; side focus parallax adjustment from 10 yards to infinity; Coyote FDE finish.
Precision Adjustment System – Crafted from 7075-T6, designed to never snag or rotate unintentionally.

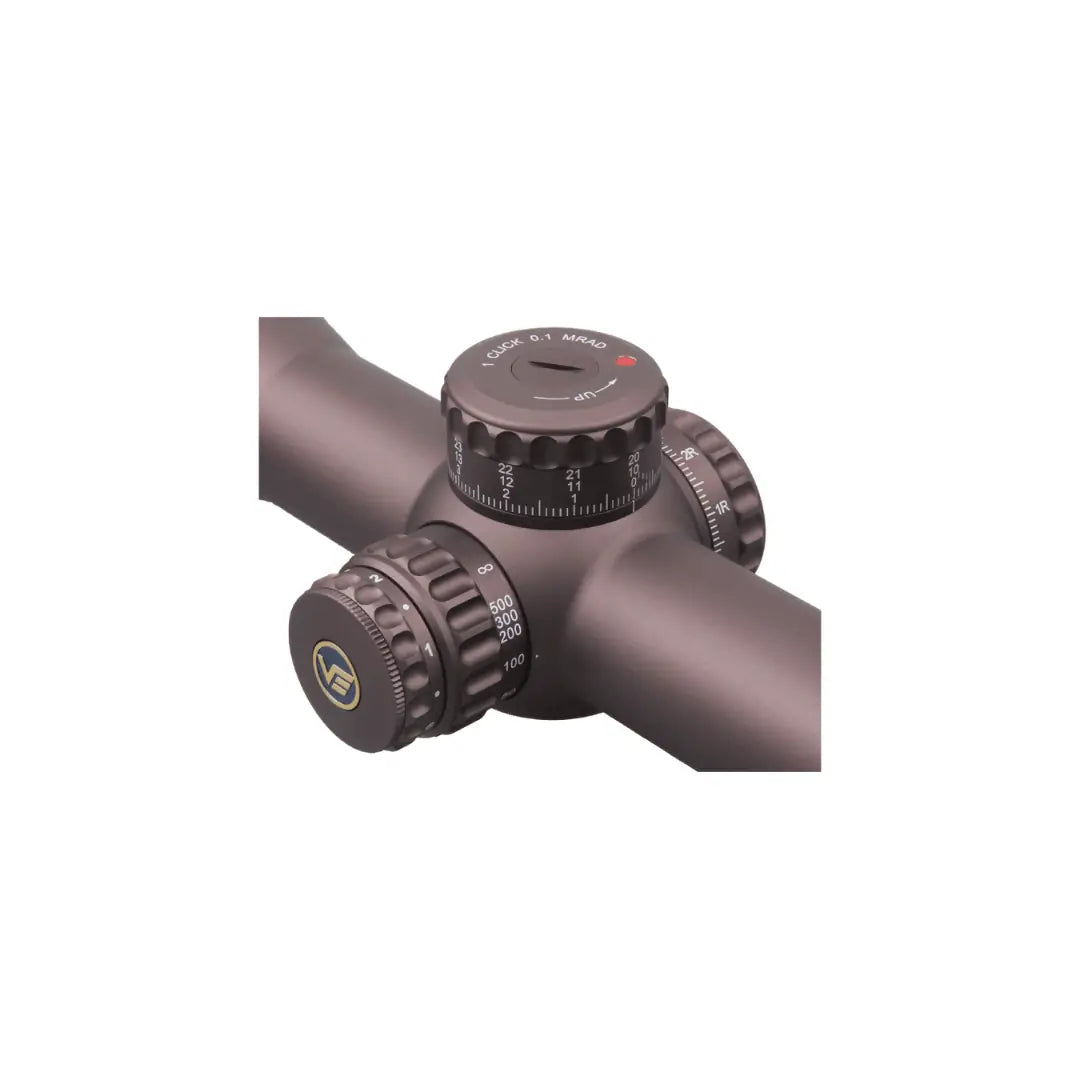

Turret System – 1/10 MIL adjustments with zero stop and turret lock; 100 clicks per round; 34 MIL elevation range.
Advanced Reticle – Etched glass VEC-MBR MIL ranging reticle; center cross illuminated with digital lines and dots.
Rugged Performance – Rated to withstand .338 Lapua Magnum recoil; reliable across all hunting, sporting, and competition applications.
Specification
Magnification: 4–24x
Objective Lens Dia.: 56mm
Ocular Lens Dia.: 42mm / 1.7in
Ocular Lens Length: 54mm / 2.1in
Exit Pupil: 8–2.3mm
Optics Coating: Fully multi-coated, Diamond Clear
Field of View @ 100 yd: 30.6–5.1 ft
Field of View (Angular): 5.9–1.0°
Eye Relief: 100mm / 4.0in
Tube Dia.: 34mm monotube
Click Value: 1/10 MIL
Elevation Adjustment Range: 34 MIL
Windage Adjustment Range: 16 MIL
Side Focus: 10 yds to ∞
Reticle: Etched glass VEC-MBR (scale based on 1m / 3.3ft height object)
Illumination: 6 gears (red)
Battery Type: CR2032
Turret Features:
100 clicks per revolution
Turret lock
Zero stop feature
Shockproof: Tested to 1000G
Waterproof: IP67 (1m for 30 min)
Fogproof: Fully nitrogen purged
Housing Material: 6061-T6 aircraft-grade aluminum
Finish: Coyote FDE
Diopter Compensation: +2 to –3 (fast-focus eyepiece)
Length: 362mm / 14.3in
Weight (net): 840g / 29.6oz
Focus Marks: 10, 15, 20, 30, 50, 100, 200, 300, 500, ∞

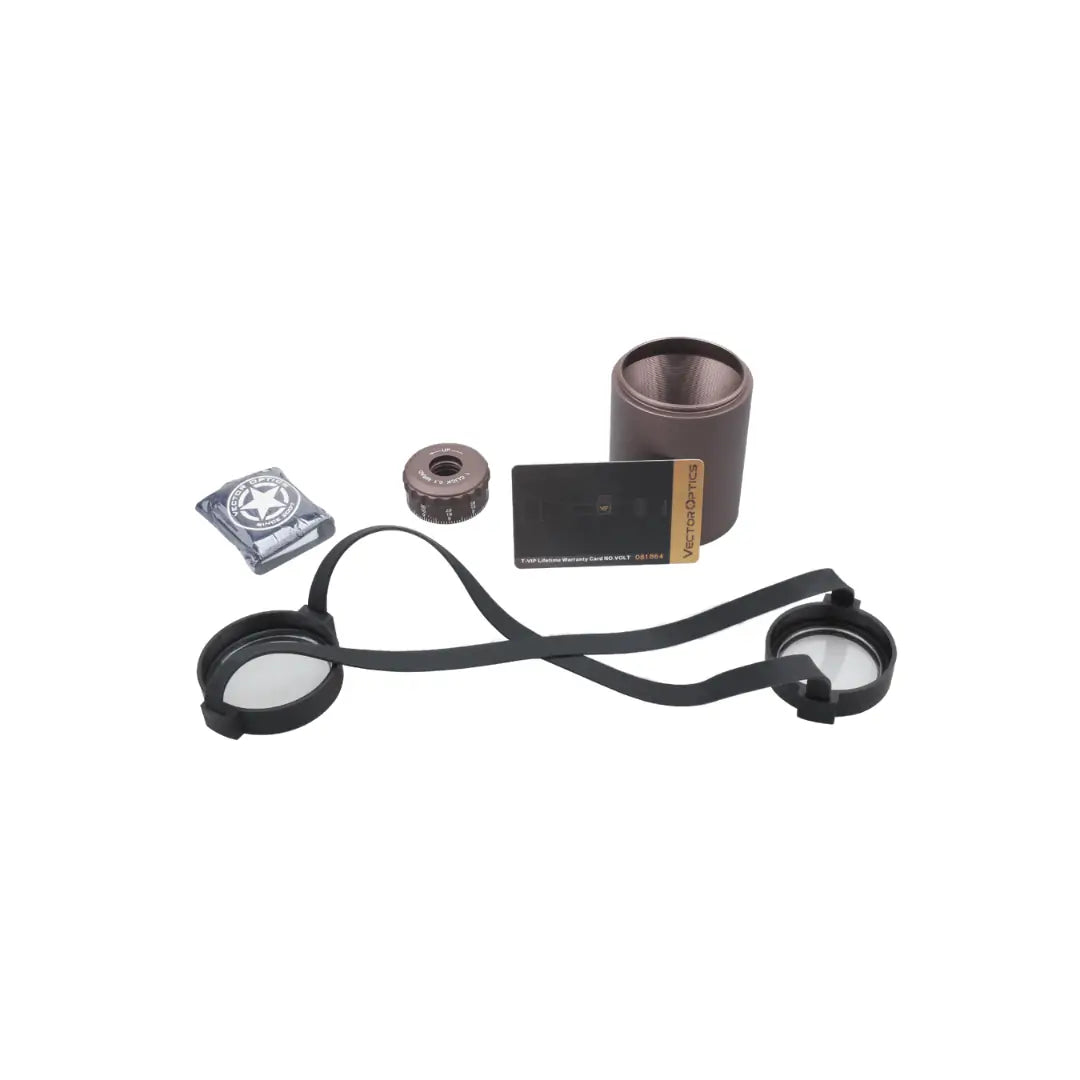

Including Items: One pair of 34mm Picatinny scope rings, spare elevation turret (without zero-stop), sunshade, instruction manual, lens caps, cleaning cloth.
