Description
Crystal-Clear Optics – Fully multi-coated lenses provide an edge-to-edge image with a wide field of view; side focus adjusts from as close as 10 yards.
Durable Build – 4x zoom factor, 4-inch long eye relief, and a 25.4mm (1 inch) monotube made from 6061-T6 aluminum.

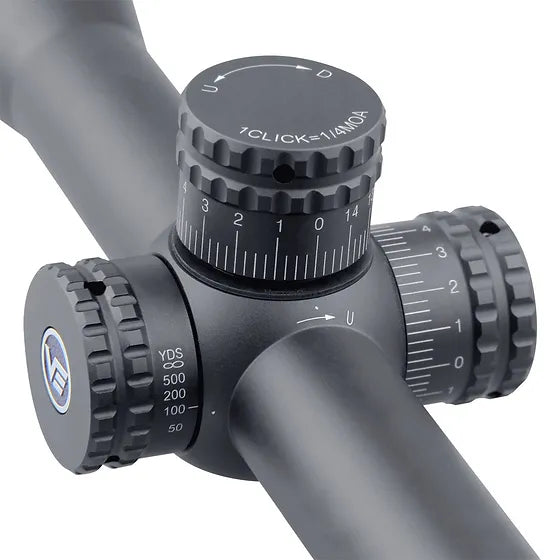

Precision Reticle – 1/4 MOA zero-reset adjustment with turret lock, etched glass BDC reticle, and illuminated center dot.
Specification
Magnification: 4-16x
Objective Lens Dia.: 44mm
Ocular Lens Dia.: 38mm / 1.5 inch
Ocular Lens Length: 60mm / 2.4 inch
Exit Pupil: 11-2.7mm
Optics Coating: Fully-multi coat
Field of View: 21.1-5.3 feet @ 100 yds
Eye Relief: 105–100mm / 4.1-3.9 inch
Length: 345mm / 13.6 inch
Weight: 650g / 23.0 ounce
Tube Dia.: 25.4mm 1" Monotube
Click Value: 1/4 MOA
Elevation Range: 50MOA
Windage Range: 50MOA
Parallax Setting: 10 yards to infinite

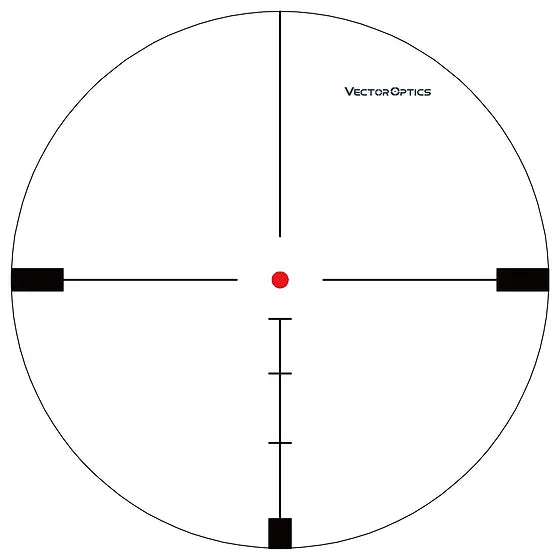

Reticle: VOI-10BDC
Illumination: 11 levels red + 1 level NV
Battery Type: CR2032
BDC Reticle usage: set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range
Distance between objective lens part and middle turret: 60mm (2.4 inch)
Length of middle turret part: 37mm (1.5 inch)
Distance between middle turret part to power ring: 57mm (2.2 inch)
Side focus marks: 10, 15, 25, 50, 100, 200, 500 and infinite yds
Shock Tested: to 750g and waterproof
Fogproof: Fully nitrogen purged to eliminate internal fogging
Material: High quality 6061 T6 aircraft grade aluminum

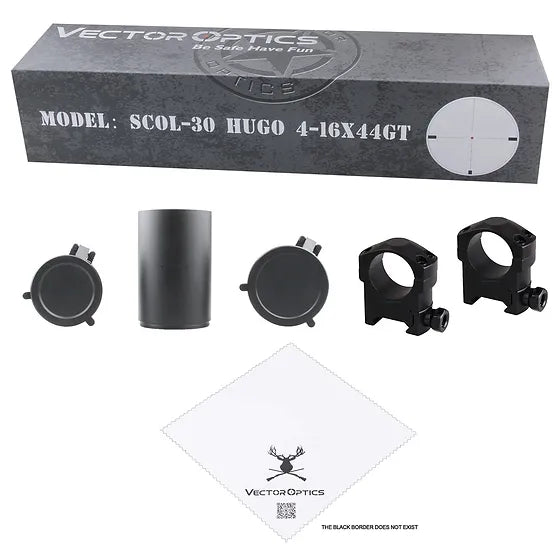

Included Items: one pair of 25.4mm weaver scope rings, flip-up caps, sunshade and cleaning cloth etc.
