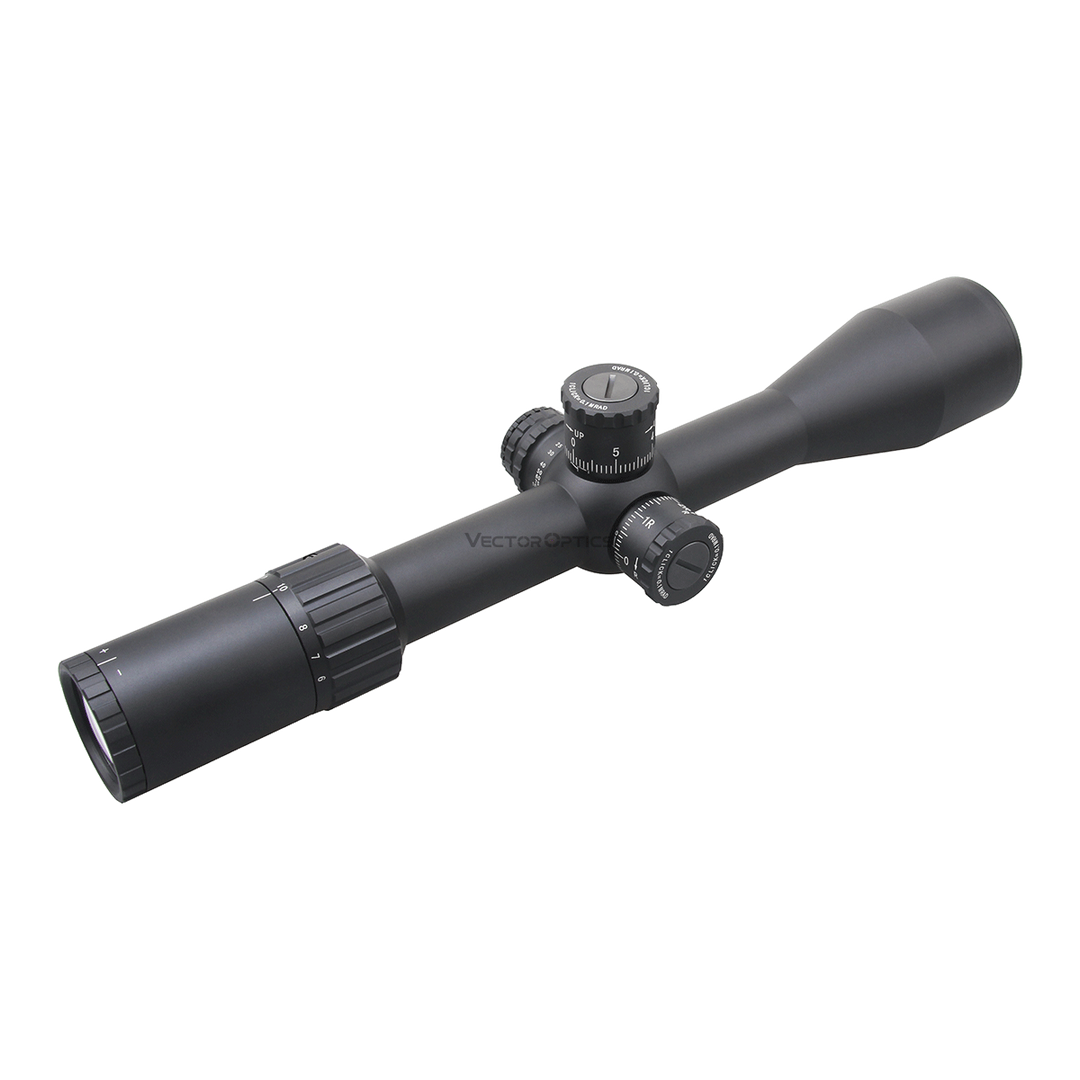

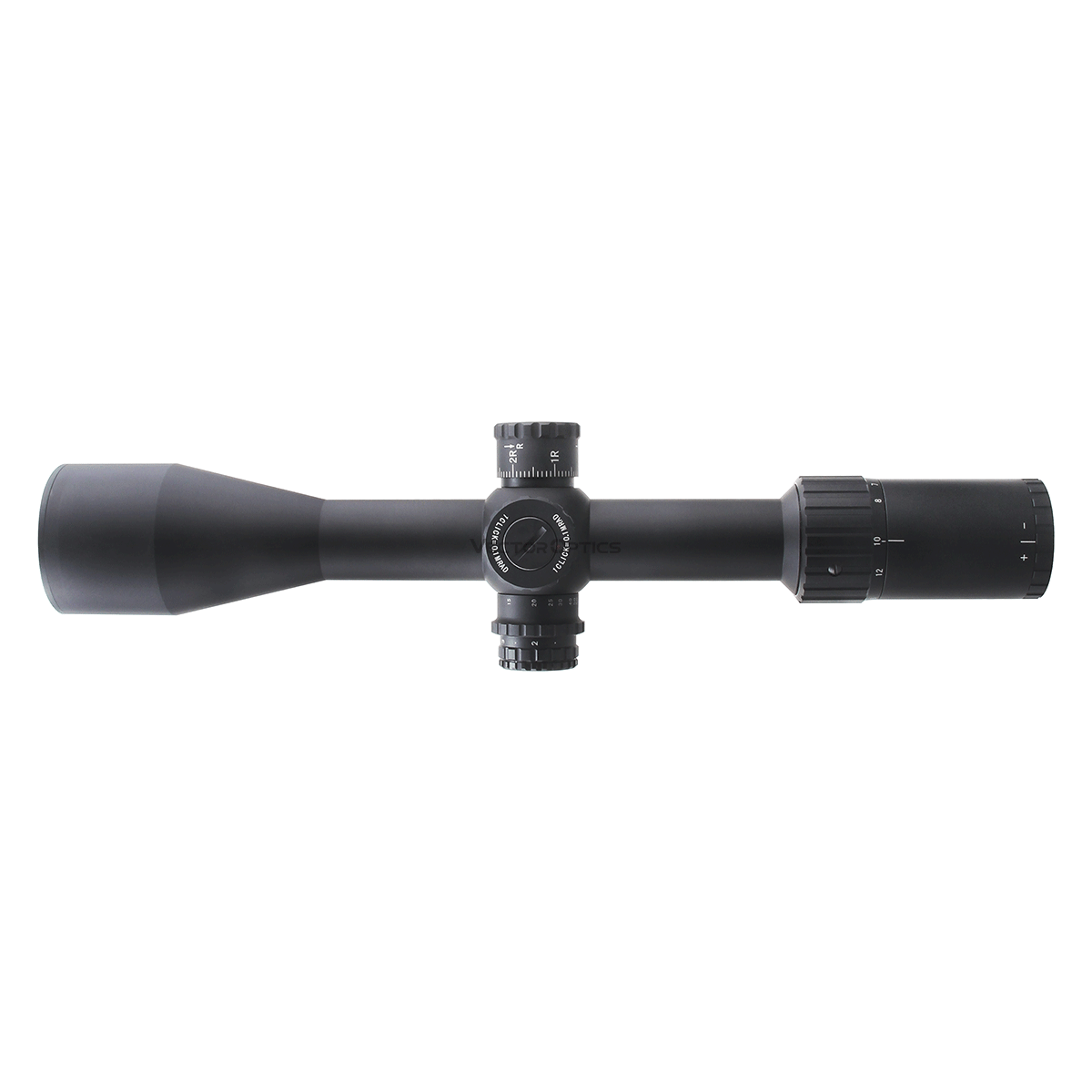

Description
Diamond-Clear Optics – HD lens system delivers a sharp, high-definition image. Second focal plane design with etched MPX1 reticle.

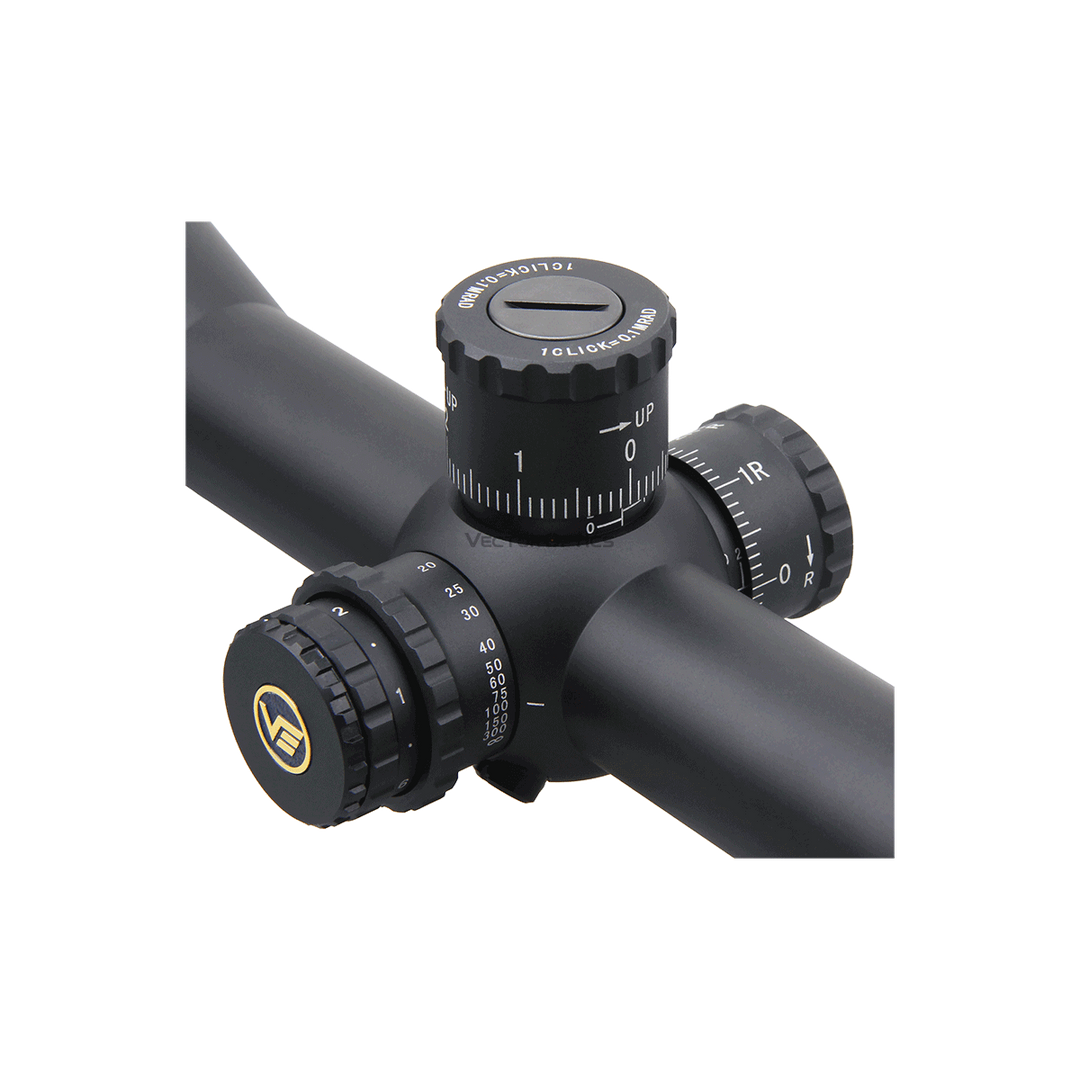

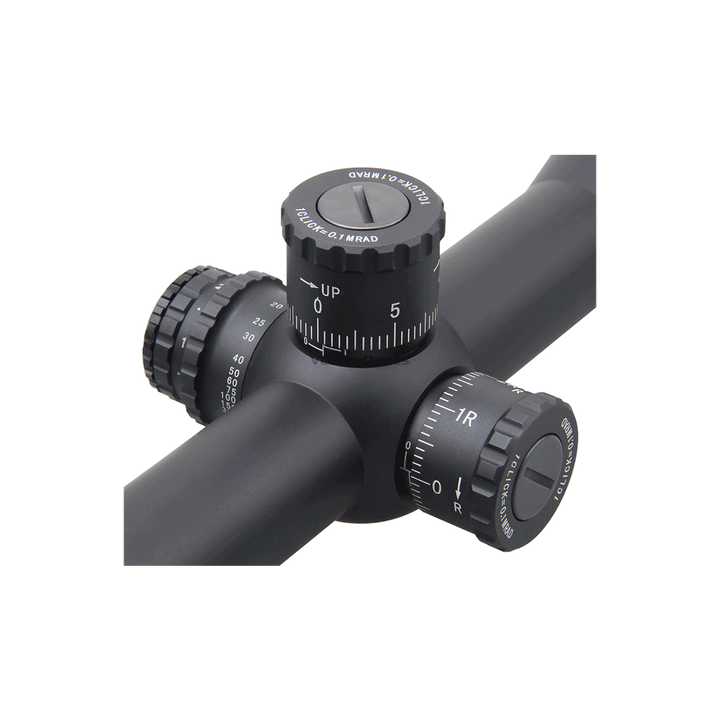

Precision Adjustments – Zero-stop turret system with 1/10 MIL (1cm / 0.1 MRAD) adjustments, built on a durable 30mm monotube.
Versatile Performance – Side focus from as close as 10 yards, 4.0" long eye relief, IP67 waterproof rating, and illuminated center dot for all lighting conditions.
Specification

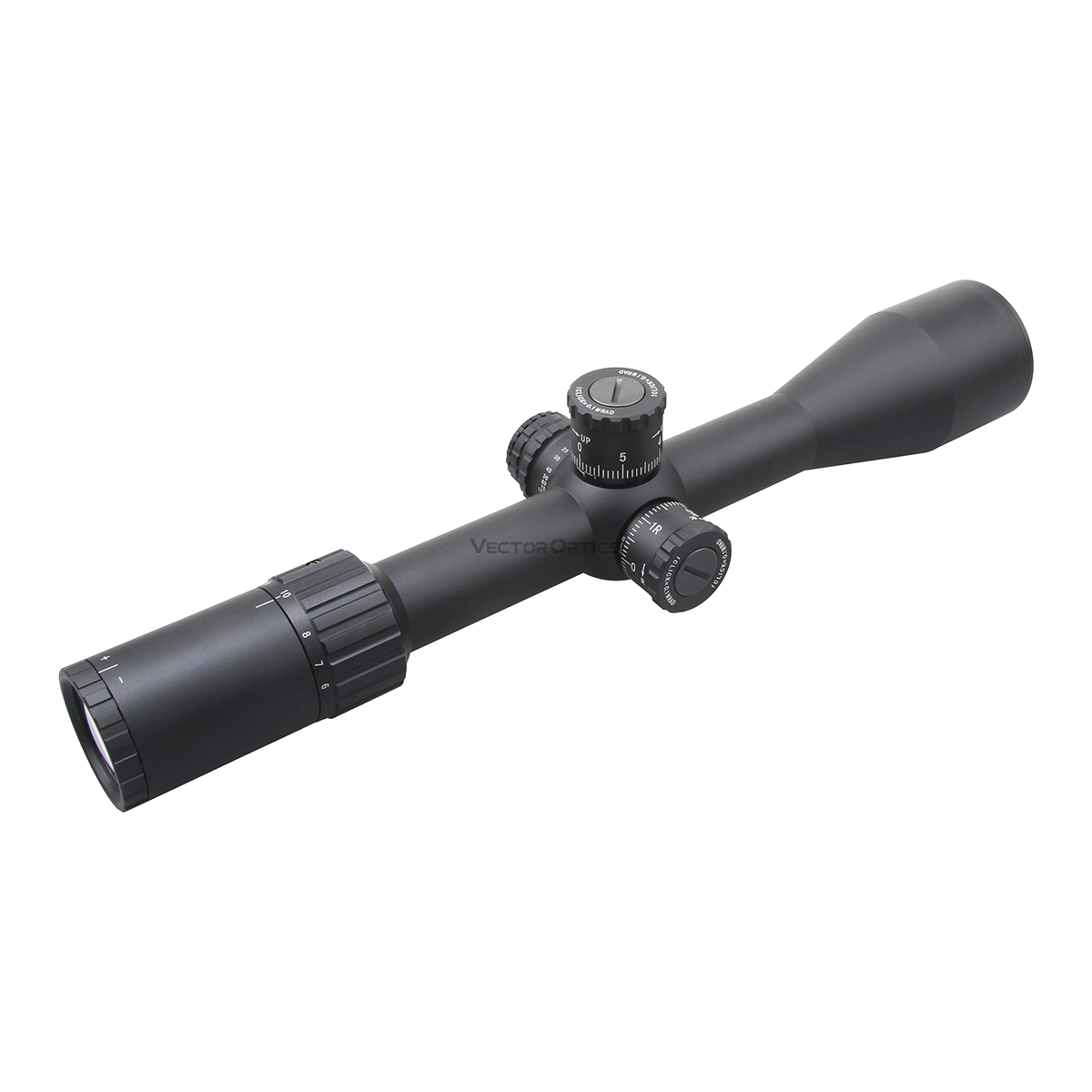

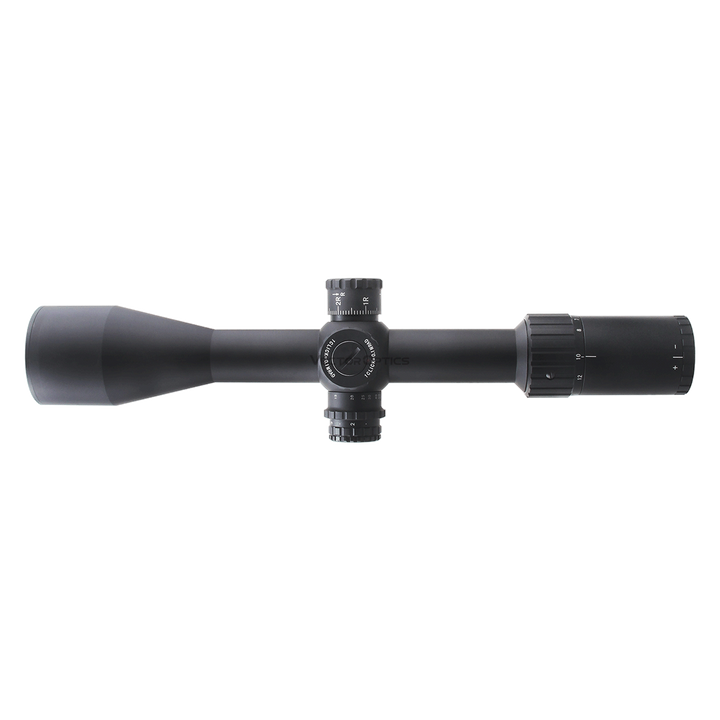

Magnification: 6-24x
Objective Lens Dia.: 50mm
Item No.: SCOL-46
Lens & Reticle: Diamond Clear ImageHD Lens, Second Focal Plane, Etched MPX1 Reticle
Turret System: Zero-Stop, 1/10 MIL (1cm / 0.1 MRAD) Adjust, 30mm Monotube
Side Focus: Min 10 yards
Eye Relief: 4.0" Long
Waterproof Rating: IP67
Illumination: Center Dot Illuminated
Ocular Lens Dia.: 38mm
Ocular Lens Length: 60mm
Exit Pupil: 8.3-2.2mm
Optics Coating: Diamond Fully-Multi HD
Field of View: 3.4-0.85°
Field of View: 17.9-4.5 ft @ 100 yds
Eye Relief: 100mm / 4.0 inch
Length: 365mm / 14.4 inch
Weight: 763g / 26.9 oz
Tube Dia.: 30mm
Click Value: 0.1 MRAD, 1/10 MIL, 1cm
Elevation Range: 19.5MIL (60MOA)
Windage Range: 19.5MIL (60MOA)
Parallax Adjustment: 10 yards to infinite
Reticle: Etched Glass MPX1
Illumination: 6 levels red
Battery Type: CR2032
Construction: 30mm hammer-forged aluminum monotube design
Side Focus Marks: 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 150, 200, 300 and infinite
Durability: Shock tested to 1000g, waterproof IP67 and fully nitrogen purged

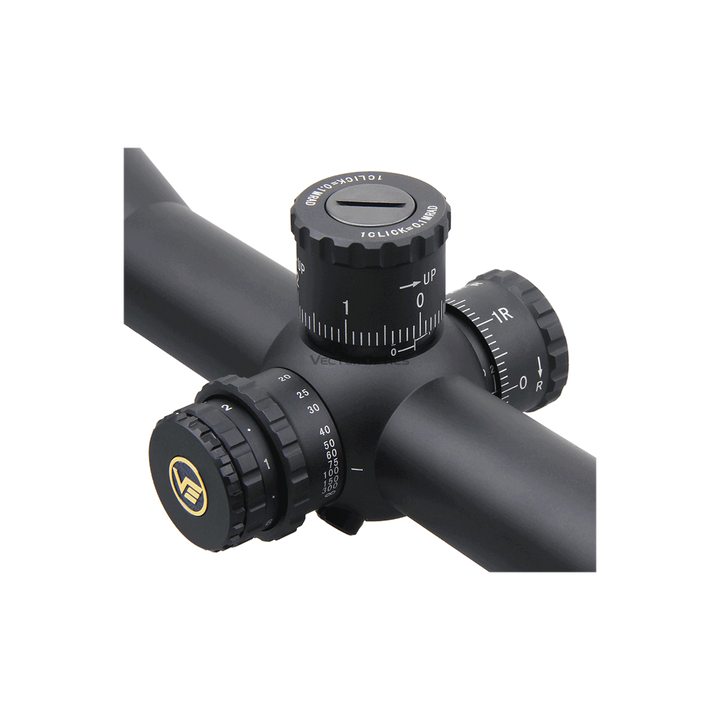

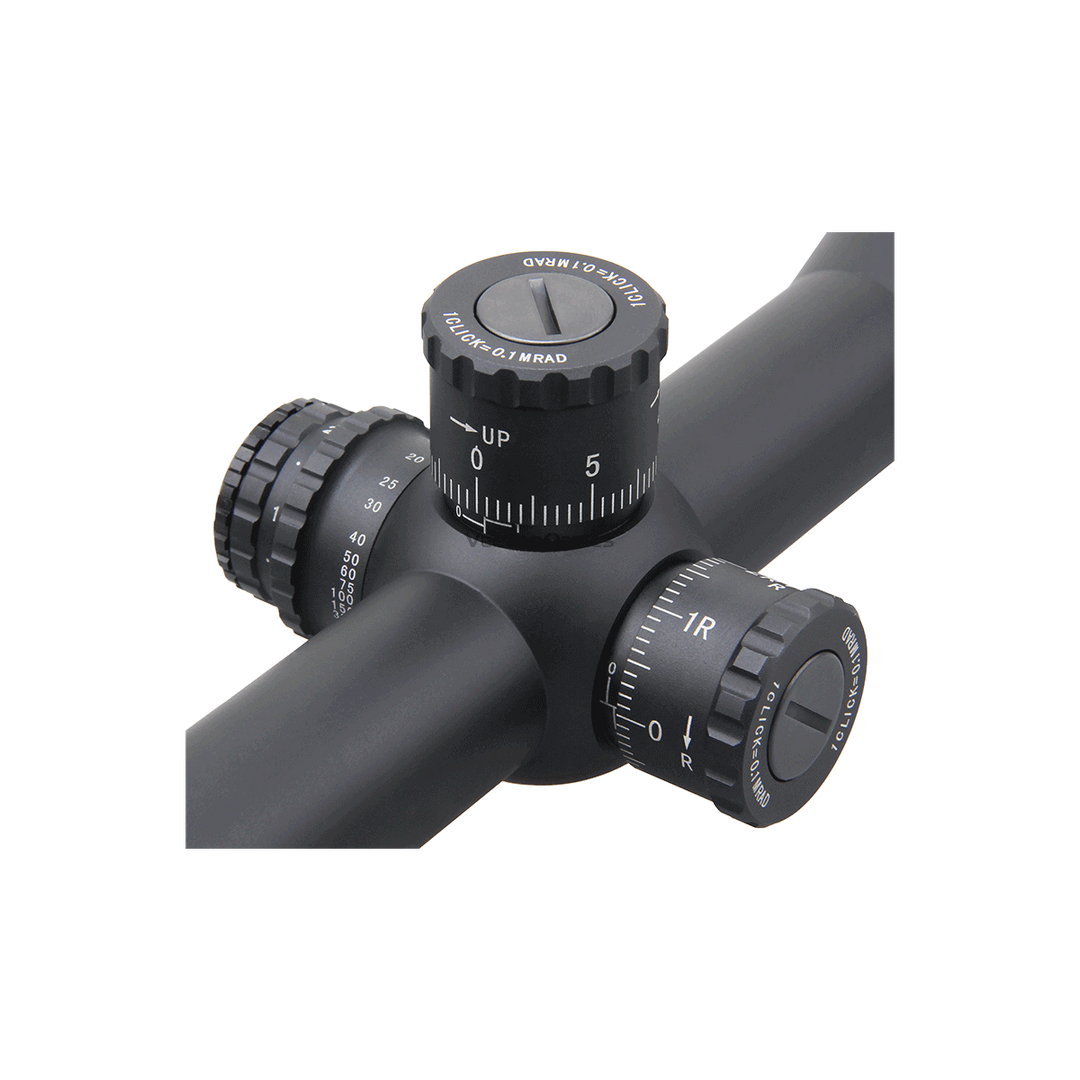

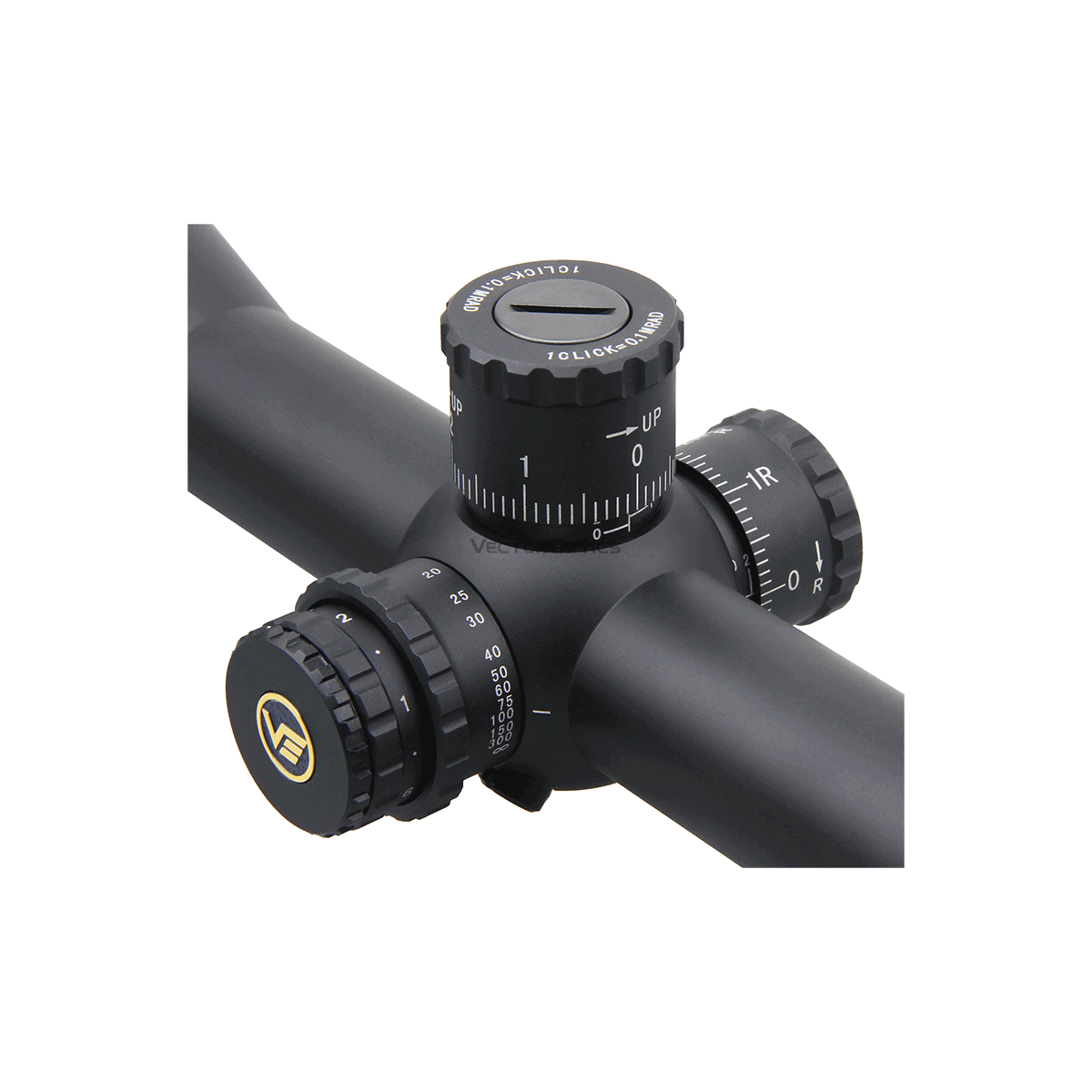

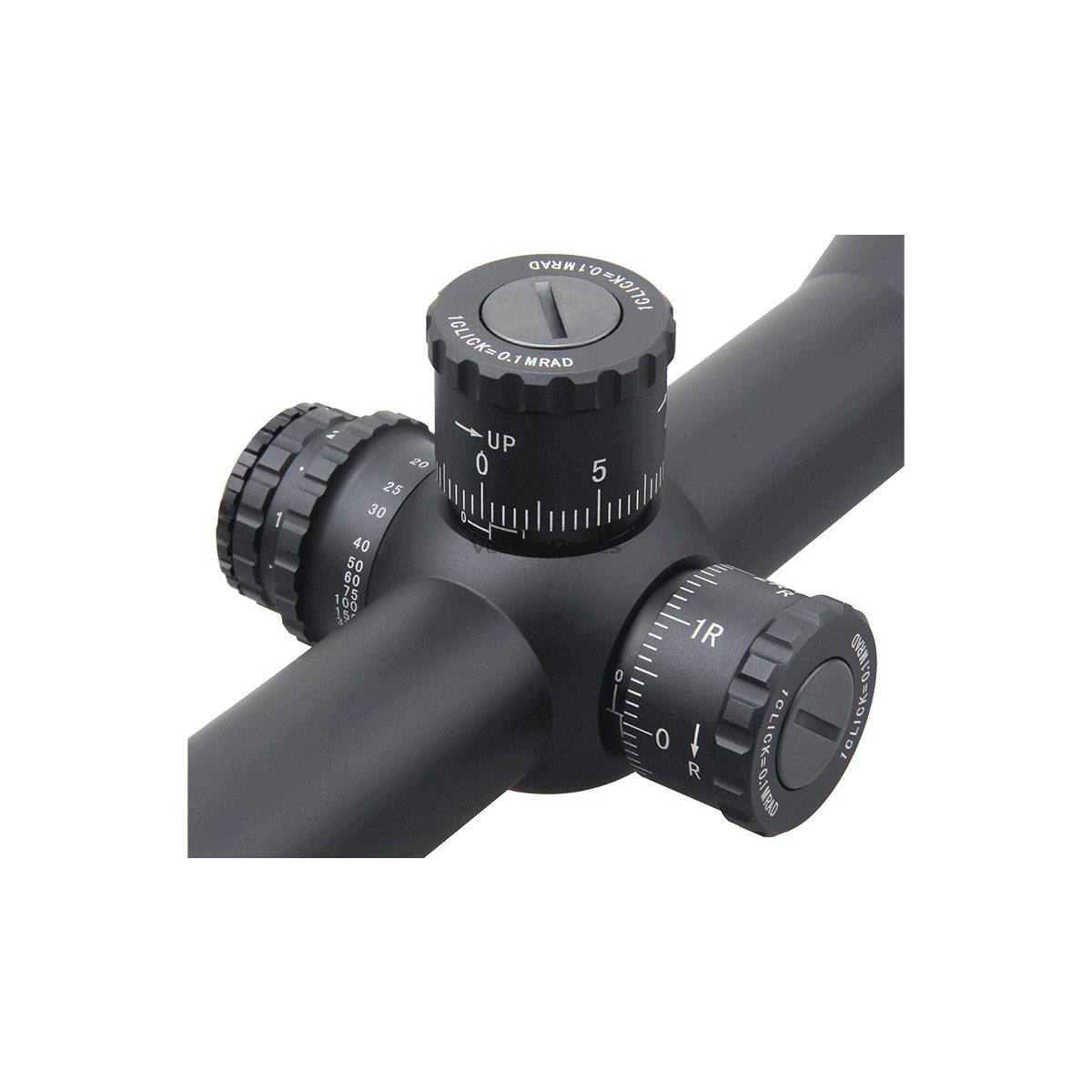

Zero-Stop Turret System: with up and down travel
Waterproof Performance: IP67 water proof for 30min at 1 meter depth
Diopter Compensation: fast-focus eyepiece -2 to +2
Included Items: one pair of 30mm picatinny scope rings, cleaning cloth, instruction manual, lens cap
