Description

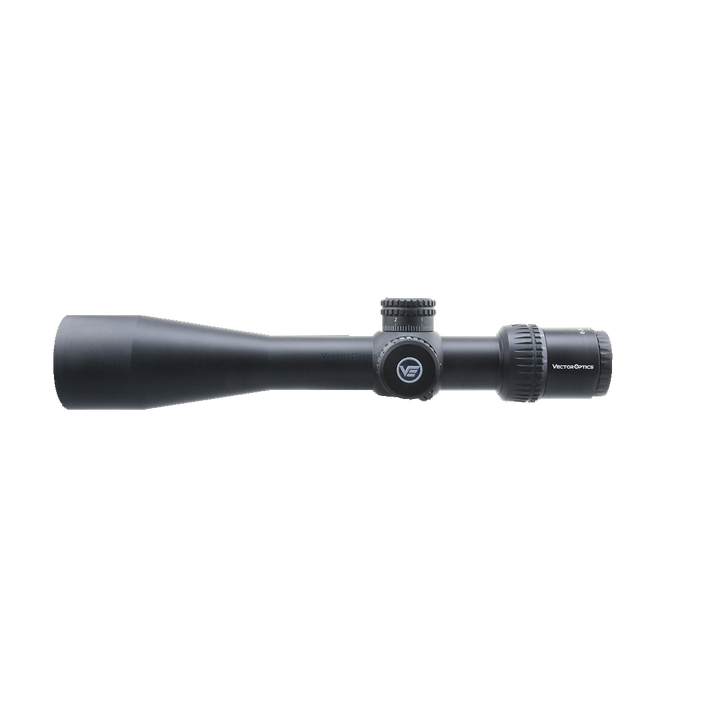

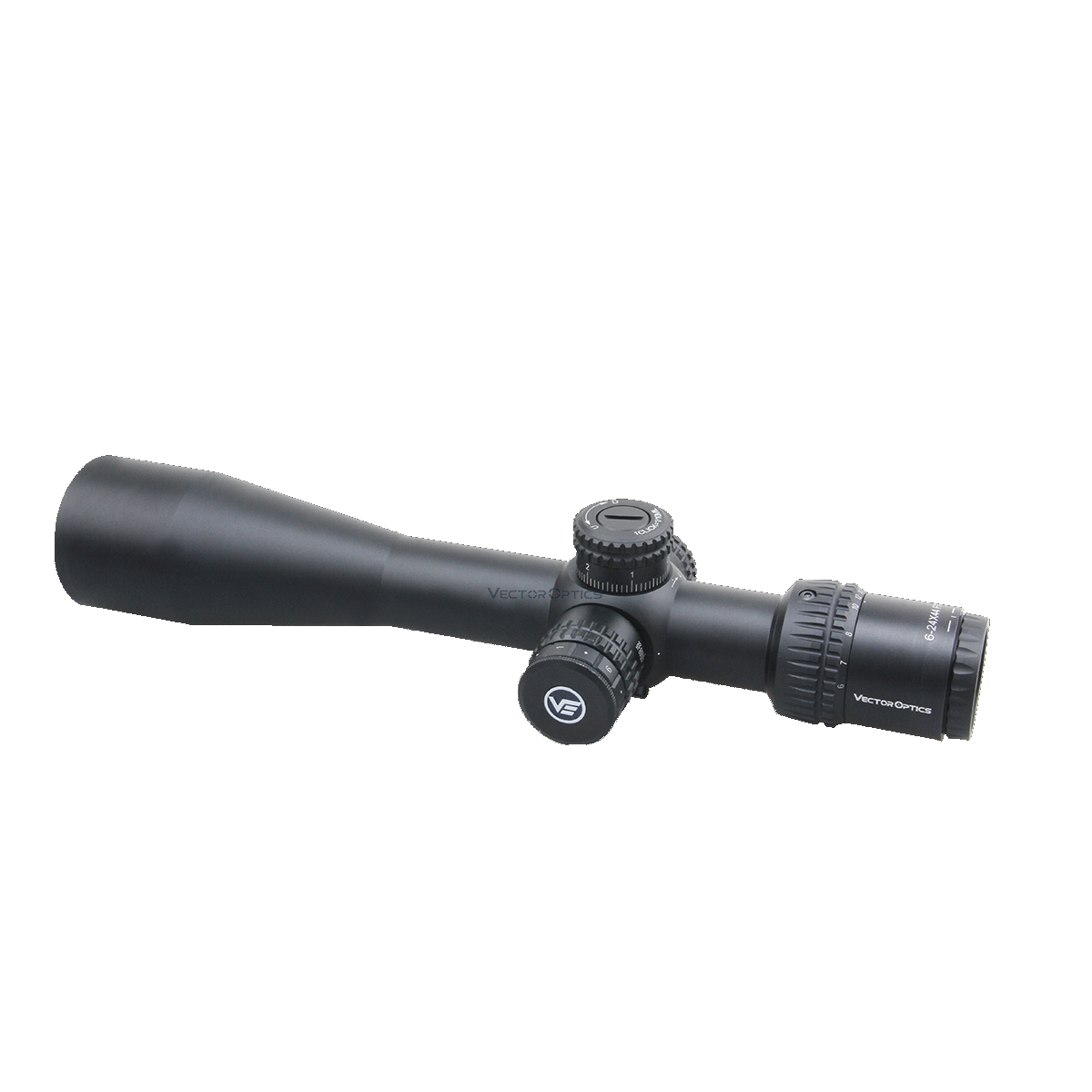

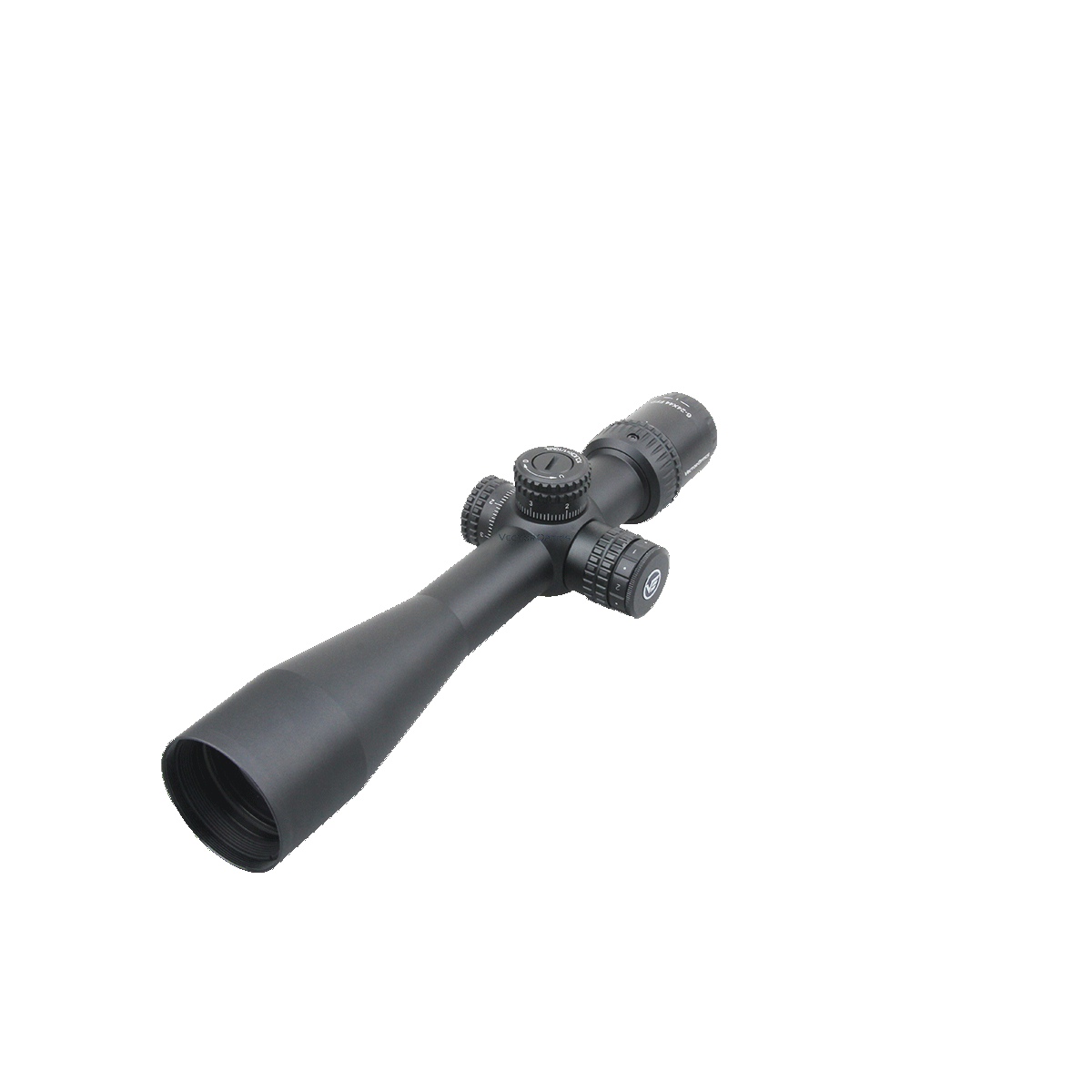

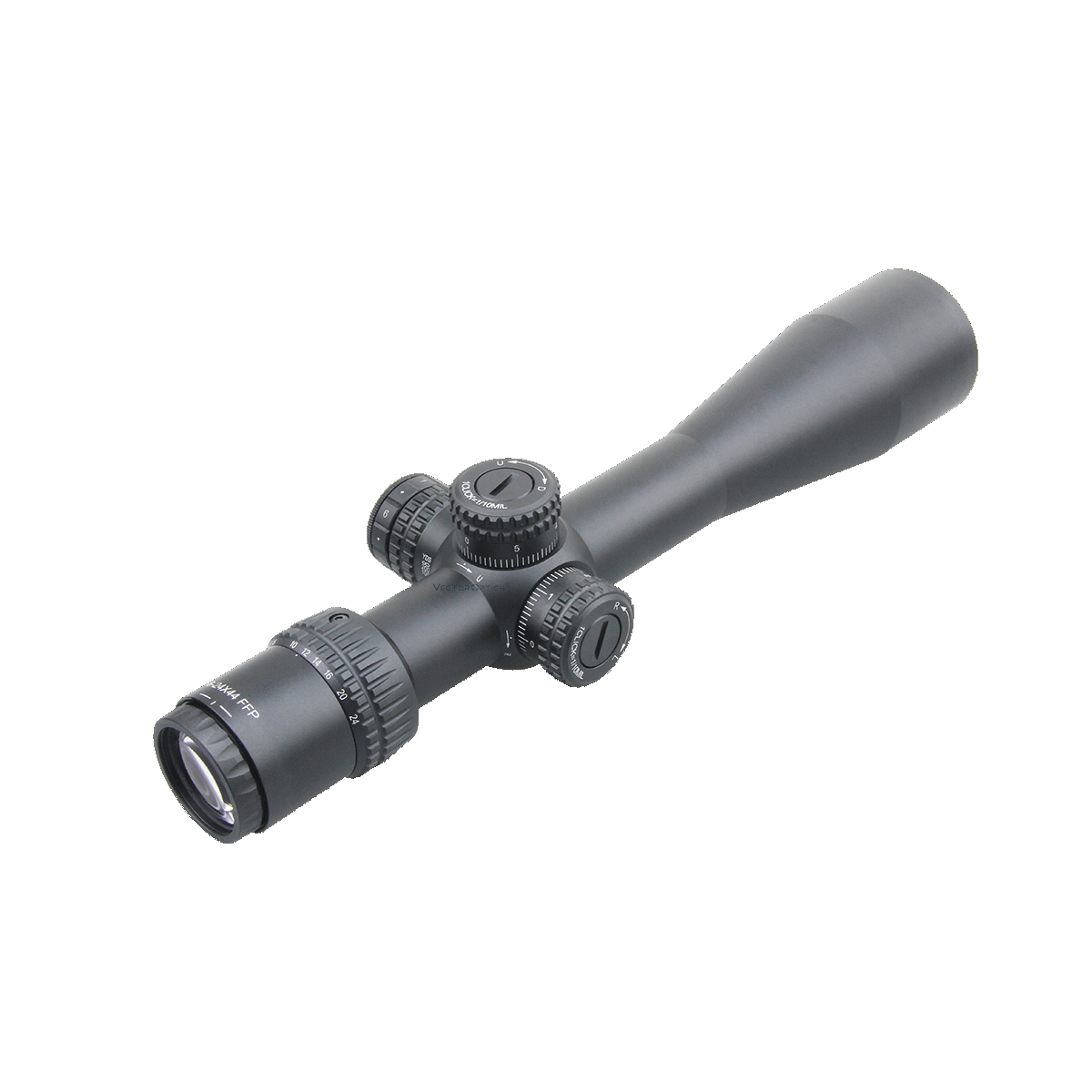

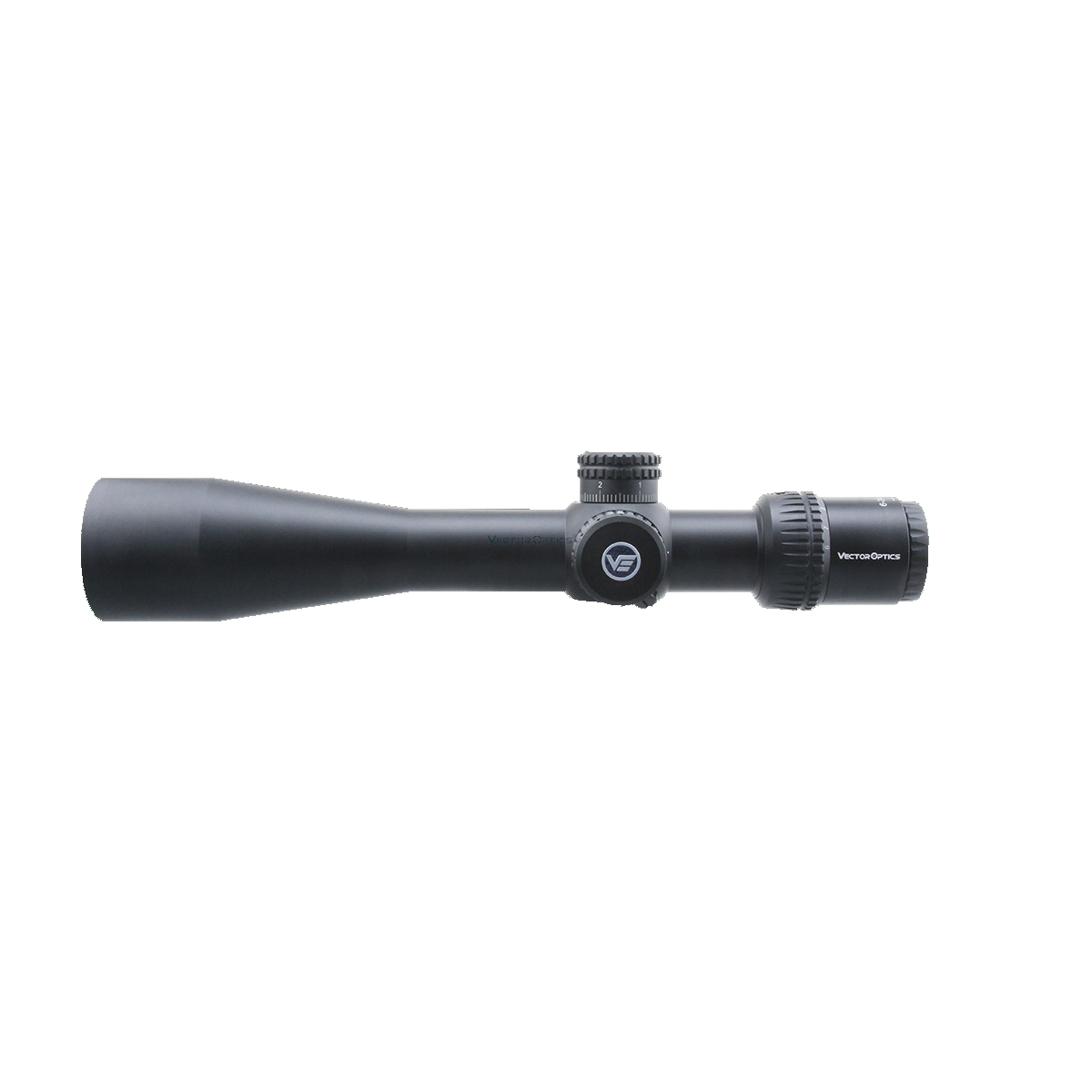

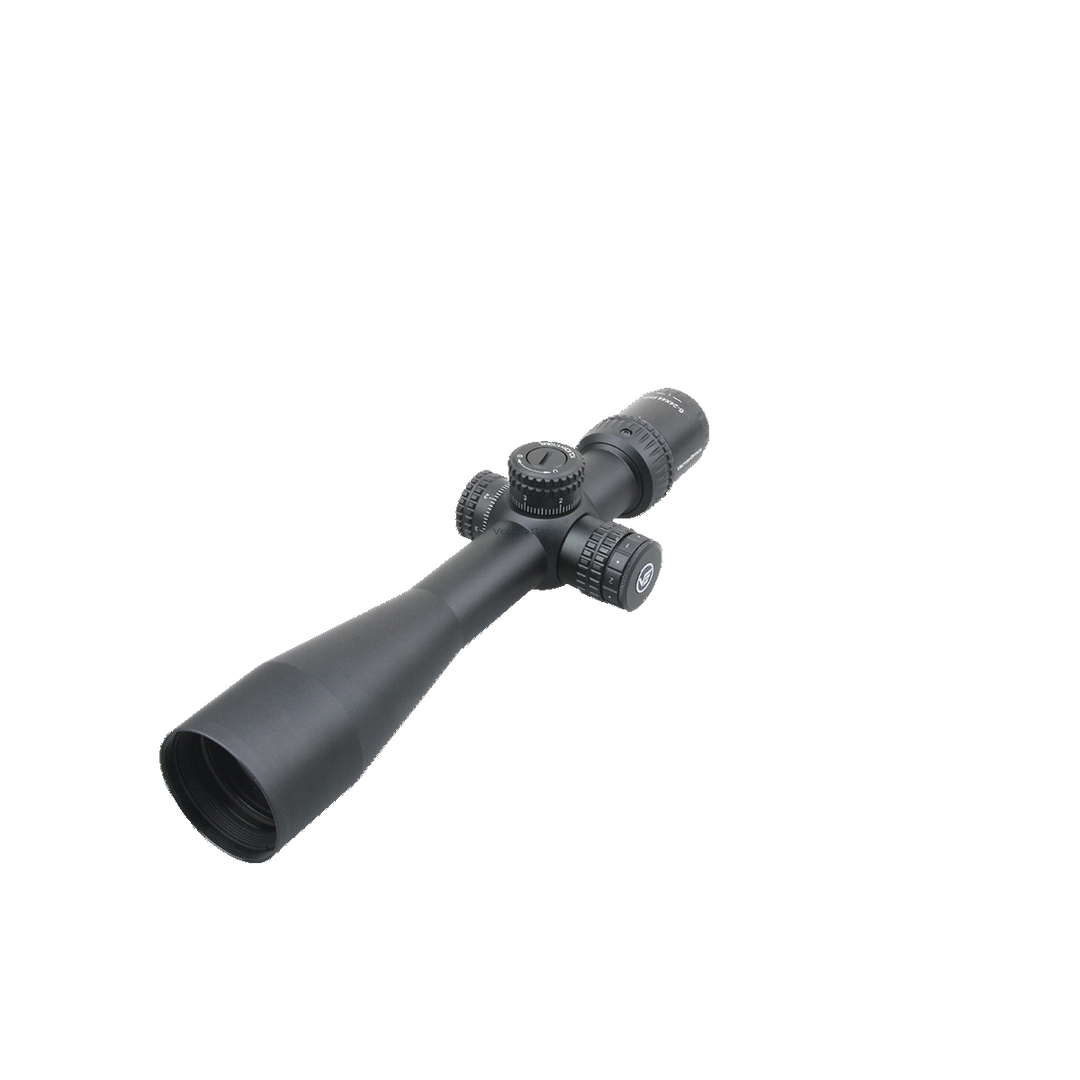

30mm Monotube, Ultra-Short — 295 mm (11.6") overall length; 1/10 MIL (1 cm) adjustment with turret lock system.
Fully Multi-Coated Optics — Side focus minimum at 10 yards; long eye relief; six-gear red illumination.
Etched Glass Reticle — Center dot illuminated; includes honeycomb sunshade and flip-up caps.
Ideal for Compact Firearms — “A must for your compact air guns and lightweight firearms — the shortest marksman scope for you.”
Specifications
Magnification: 6–24x
Objective Lens Dia.: 44mm
Ocular Lens Dia.: 33mm
Ocular Lens Length: 35mm
Exit Pupil: 7.3–1.8mm
Optics Coating: Fully Multi-coated
Field of View @ 100 yd: 17.5–4.3 ft
Eye Relief: 90–85mm / 3.5–3.4in
Tube Dia.: 30mm monotube
Click Value: 1/10 MIL, 1cm
Elevation Adjustment Range: 14.5 MIL
Windage Adjustment Range: 14.5 MIL
Parallax Adjustment: 10 yards to infinity
Reticle: Etched glass MPR-V5
Illumination: 6 gears

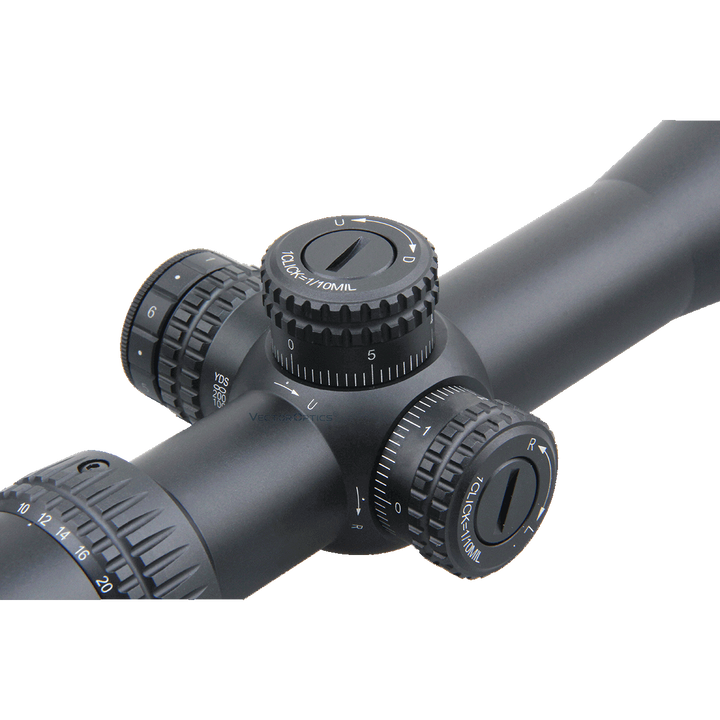

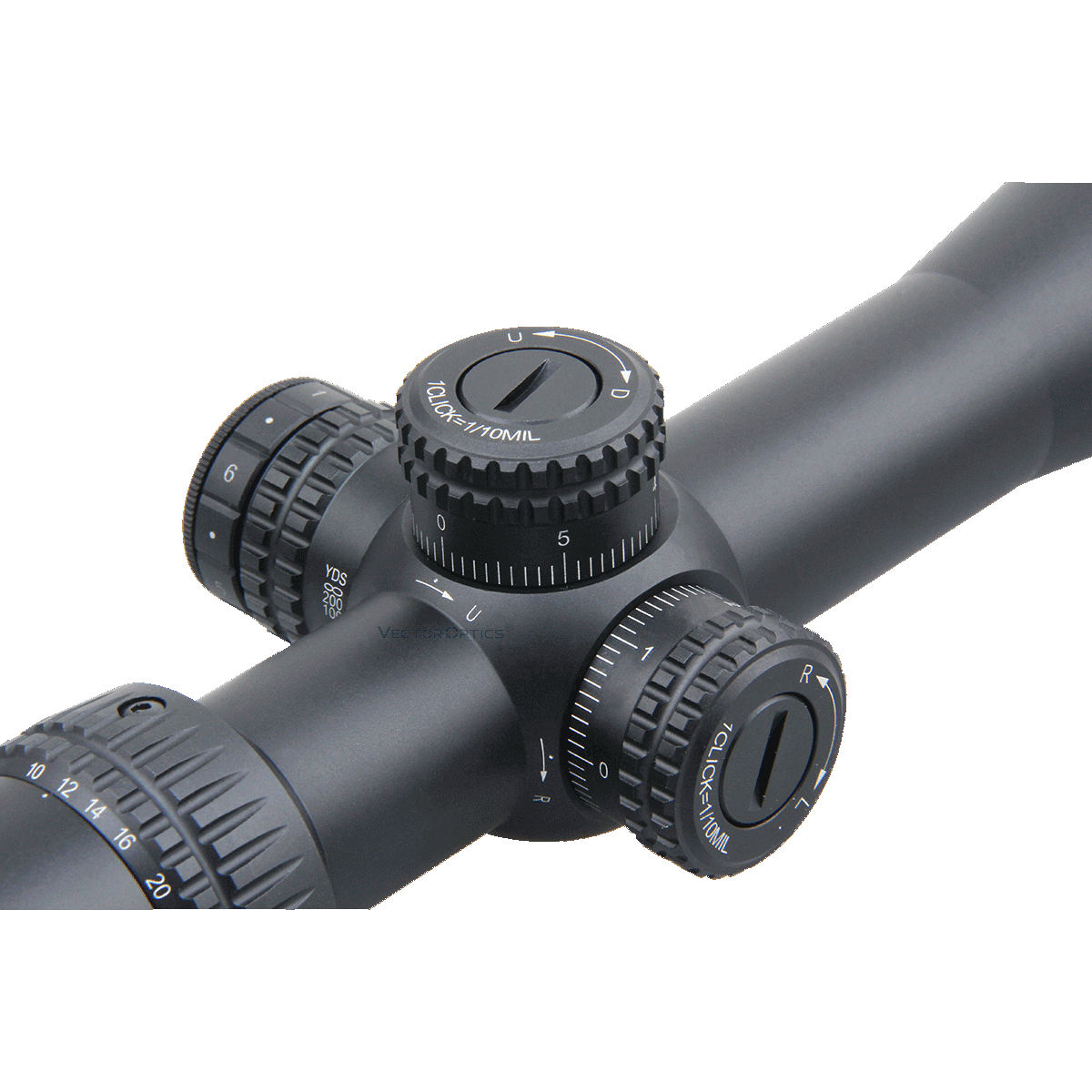

Turret Feature: Lock system (pull up for adjustment, press down to lock)
Shockproof: Tested to 750G
Water Resistance: IPX4
Fogproof: Fully nitrogen purged
Housing Material: 6061-T6 aircraft-grade aluminum
Focus Marks: 10, 15, 25, 50, 100, 200, 500 and infinity
Length: 297mm / 11.7in
Weight (net): 585g / 20.6oz
Additional Dimensions:
Objective lens to middle turret: 50mm (2.0in)
Length of middle turret: 37mm (1.4in)
Middle turret to power ring: 30mm (1.2in)
Including Items: One pair of 30mm Weaver scope rings, flip-up caps, honeycomb shade, cleaning cloth, etc.
